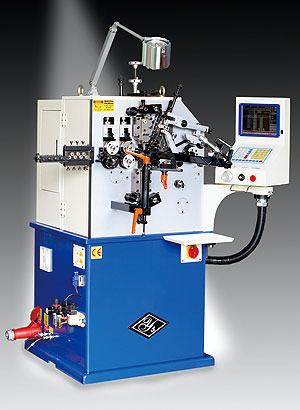

Wire Diameter 0.4 - 1.6 m/m Outside Diameter 2.0 - 9.5 m/m Max. Feeding Speed Unlimit Max. Production Speed 100m/m    40 minute/piece Control CNC Program Motor 2 Axes AC Servo Motor Voltage 220V Weight 850Kg Machine Dimensions L1380×W980×H1680 m/m

Thread diameter 0.4m/m External diameter 2.0m/m – 2.6m/m Thread diameter 0.45m/m External diameter 2.5m/m – 3.1m/m Thread diameter 0.50m/m External diameter 2.8m/m – 3.6m/m Thread diameter 0.55m/m External diameter 3.0m/m – 3.6m/m Thread diameter 0.6m/m External diameter 3.3m/m – 4.0m/m Thread diameter 0.65m/m External diameter 3.5m/m – 4.0m/m Thread diameter 0.7m/m External diameter 3.5m/m – 4.5m/m Thread diameter 0.75m/m External diameter 4.0m/m – 4.5m/m Thread diameter 0.8m/m External diameter 4.5m/m – 5.0m/m Thread diameter 0.85m/m External diameter 4.8m/m – 5.5m/m Thread diameter 0.9m/m External diameter 5.0m/m – 6.0m/m Thread diameter 1.0m/m External diameter 5.5m/m – 7.0m/m Thread diameter 1.2m/m External diameter 6.5m/m – 8.0m/m Thread diameter 1.4m/m External diameter 7.5m/m – 9.0m/m * Above specifications are subject to change without notice.
